Versatile Lock with Quick Lock Switch

Versatile Lock with Quick Lock Switch

Overview

Versatile, Concealed, Robust. No infrastructure required.

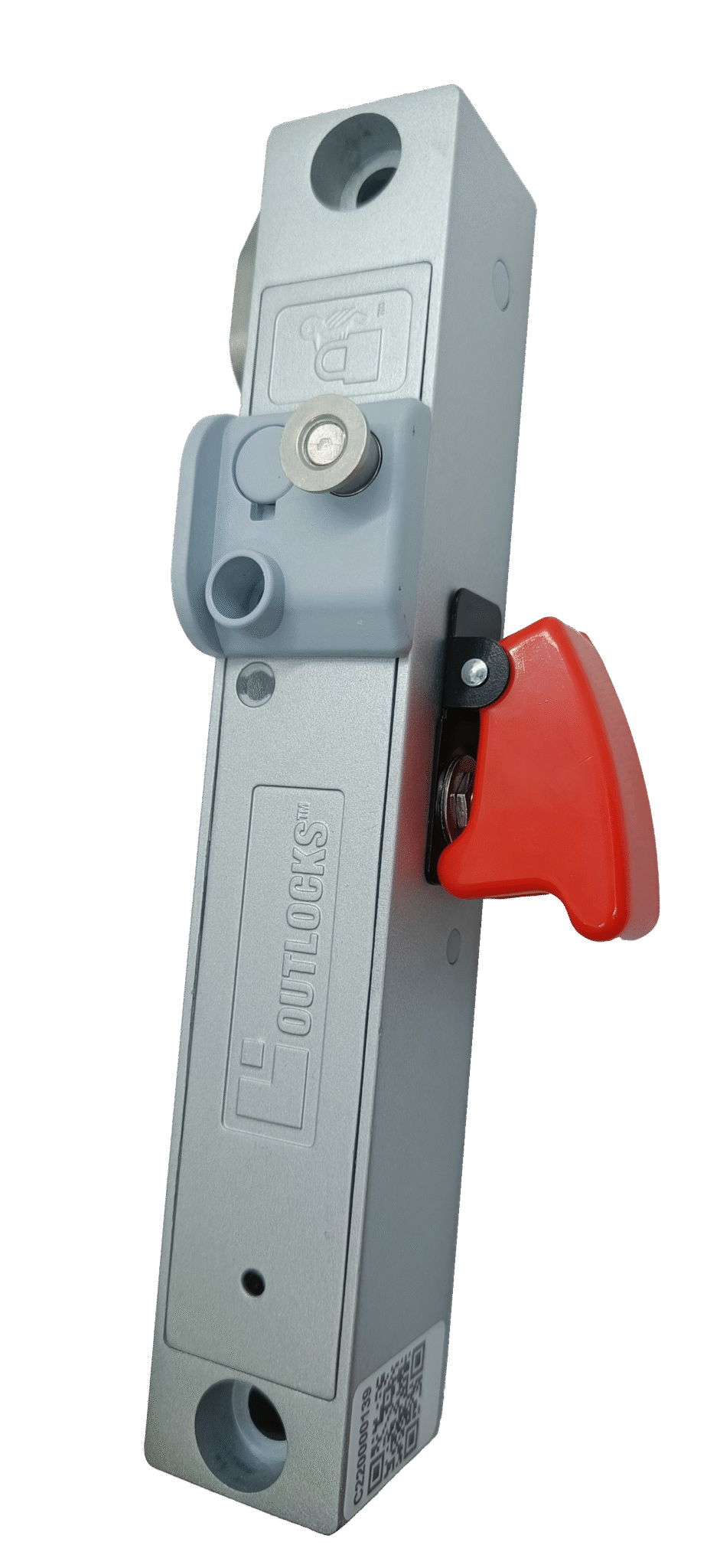

OUTLOCKS’ Versatile Lock including Quick Lock switch is specifically designed to secure safe spaces such as strong rooms and vaults. The concealed locking unit is fitted internally and has no exterior parts, so that both its presence and location are unknown.

The lock is operated by internal battery and requires no infrastructure of power or network, enabling quick and simple installation. A mechanical unlock override button allows quick opening from the inside. An internal sensor indicates door status (Open/Closed).

Features

  • Wi-Key  Technology operated

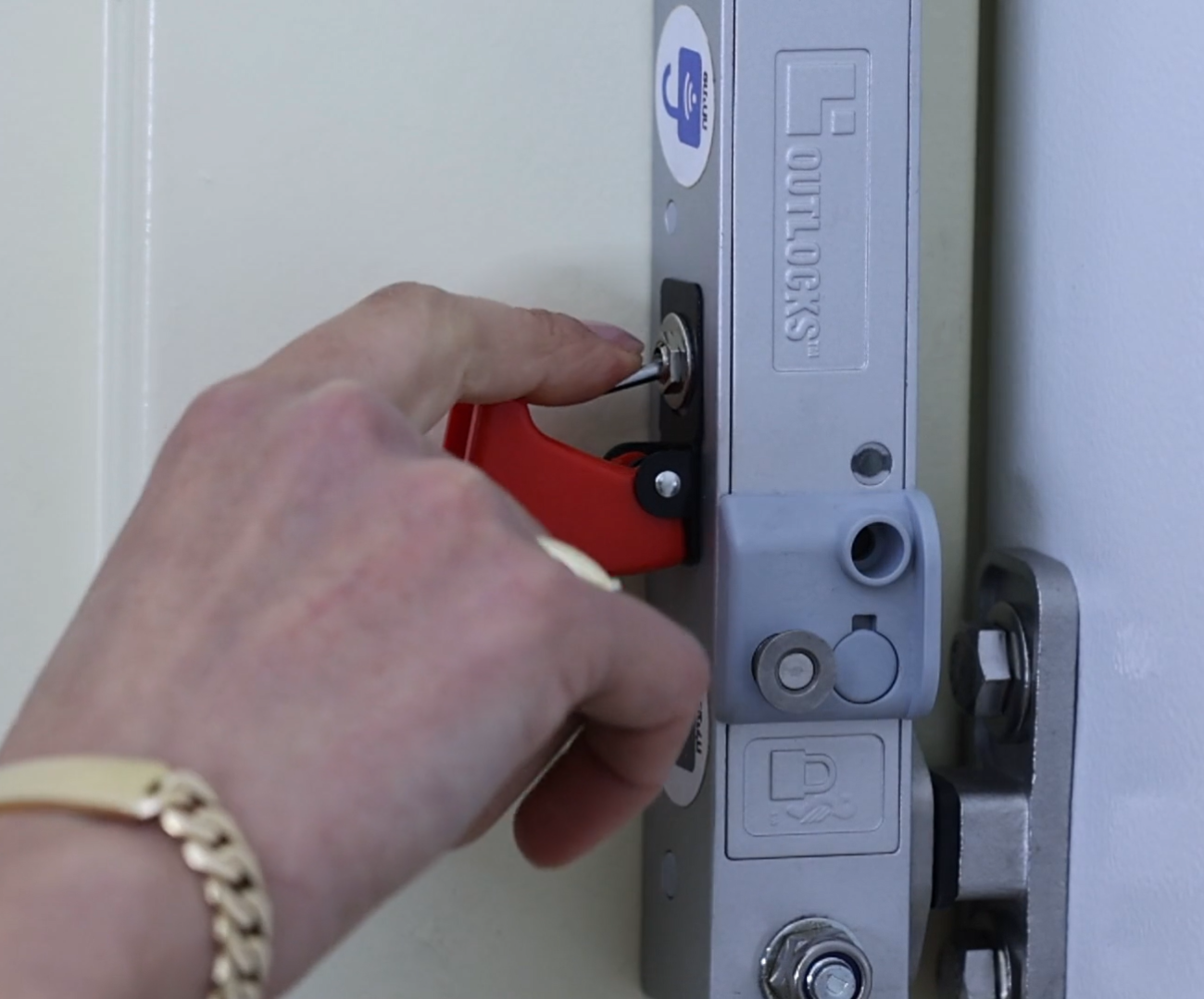

  • Quick Lock/Unlock switch operable from the inside only
  • Application enables Lock/Unlock from inside or outside the strong room
  • Suitable for strong rooms metal doors
  • Concealed
  • Internal Status sensor (Door open/ Door closed and locked)
  • Over 900Kg holding force
  • No infrastructure required, quick installation

Applications

Strong rooms in private homes or industrial spaces

Technical Specifications

  • Case & Cover: Zamak casting
  • Mechanism: Stainless steel
  • Finish: White aluminum
  • Size: L=190mm(7.45″), H=32mm(1.25″), W=30mm(1.18″) with switch 62mm(2.44″)
  • Operating Temperature: -40°C(-40°F) to +65°C (+149°F)
  • Power: 1 x Lithium battery 123A
  • Accessories: Strike (included)

Standards

For VL464 models:

  • UL 1034
  • FCC
  • EN-61010-1
  • EN300328
  • WPC
  • ESD

Available models

VL464WSR Guardlock
