Advanced Control Unit

Linked Products

Overview

Advanced. Concealed. Flexible installation.

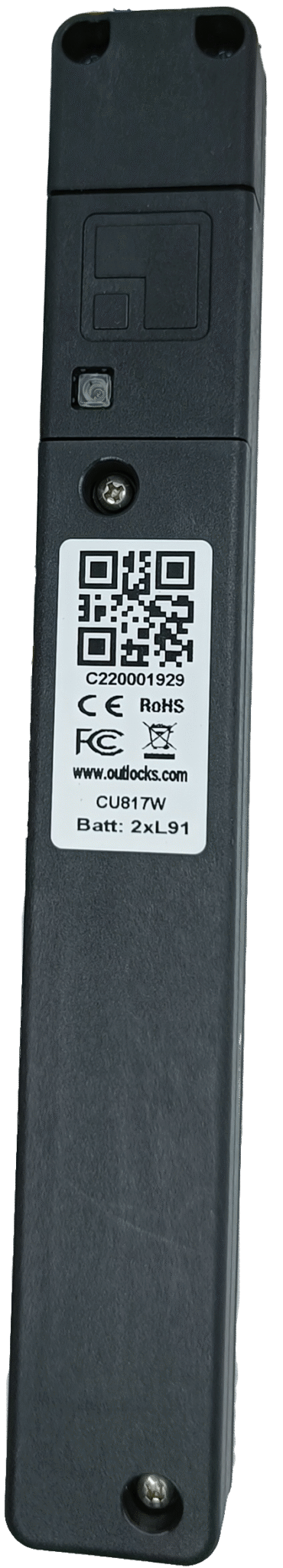

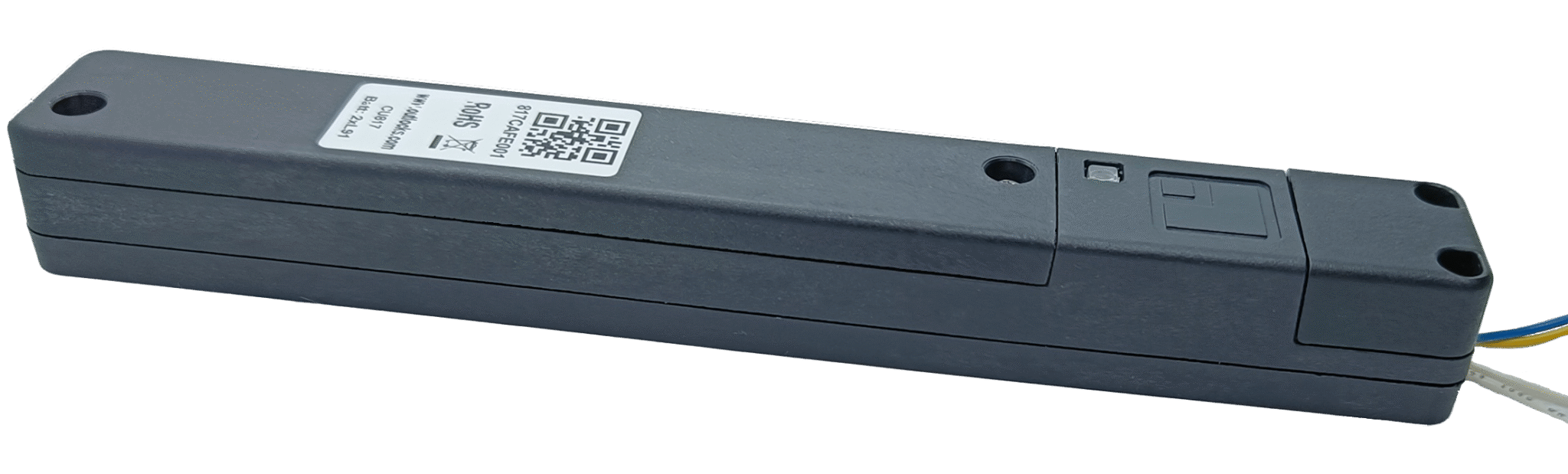

OUTLOCKS’ Control Unit model CU817 brings the latest technology to operates OUTLOCKS Locking devices – Locking Device LD850, Movement Blocker MB812, Blocking Device BD825.
Based on Wi-Key technology, BLE 5.2, Extra long battery life, use the control unit and locks to increase security and add access control to protect your assets.

Features

Wi-Key Technology operated
BLE 5.2
Concealed
Long battery life (up to 10 years)
Slim design for flexible installation
Door sensor input
No infrastructure required

Applications

The Control Unit activates locking units installed in a wide range of Applications, safes, vault rooms, various doors and openings of outdoor enclosures such as street cabinets, water utilities, government facilities, containers and more.

Technical Specifications

Case: Plastic Grilon EMS
Operating Temperature: -25°C(-13°F) to +70°C(+158°F)
Size: L=190mm (7.48″); H=22mm (0.87″); W=27mm (1.06″)
Power: 2 x L91 Lithium Batteries

Standards

CE
FCC
ESD Immunity
IP53

Available models

CU817W
